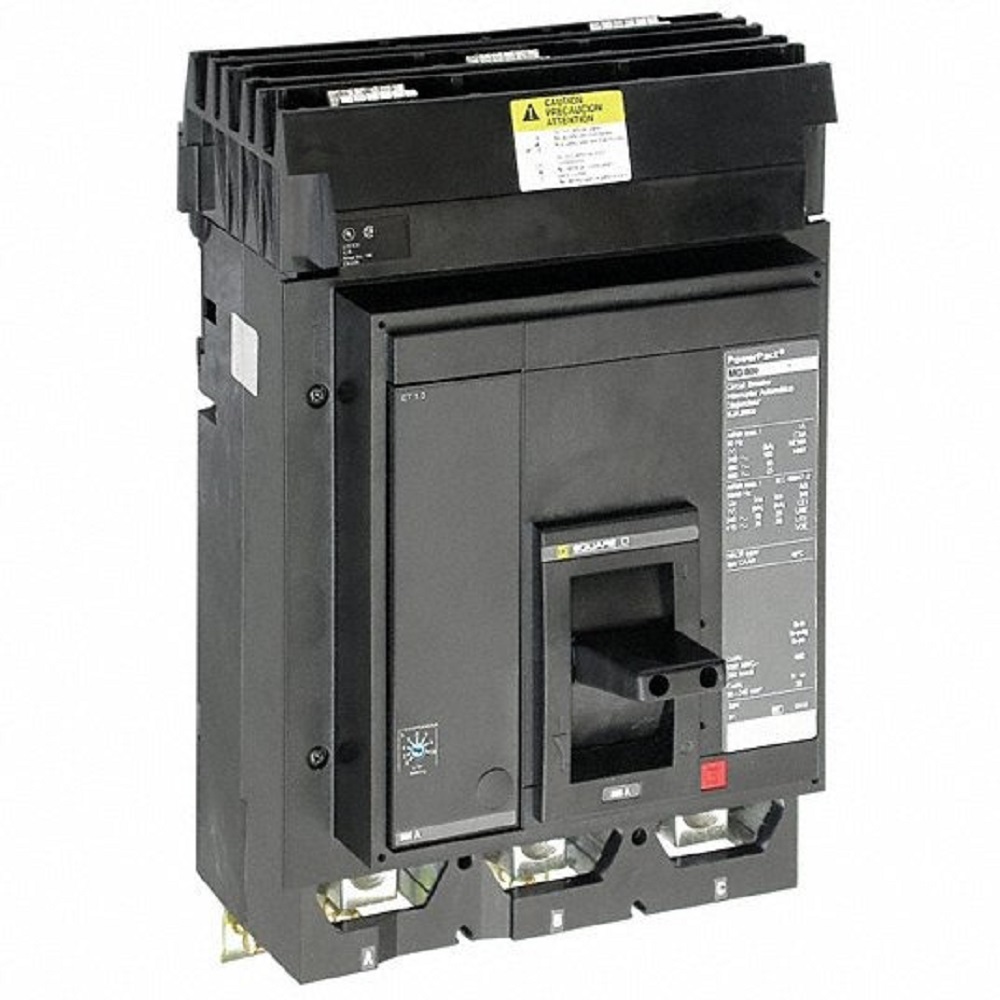

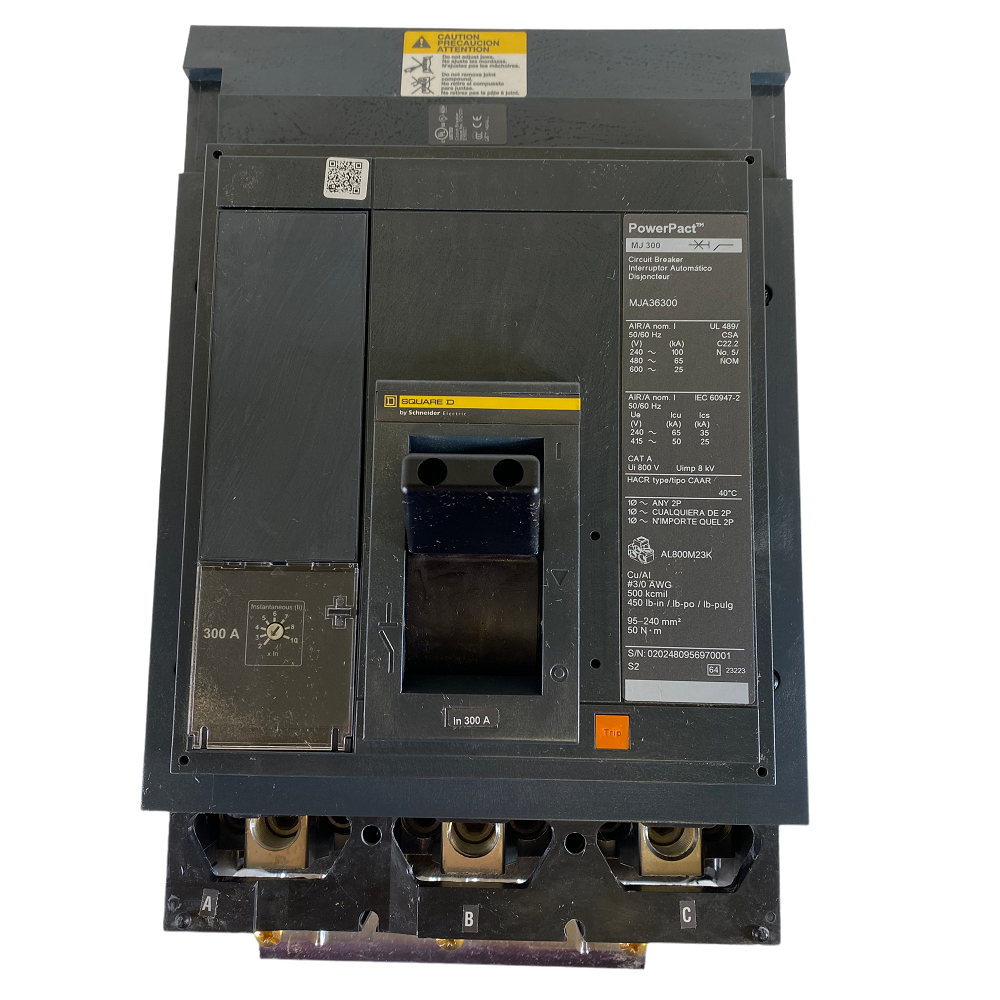

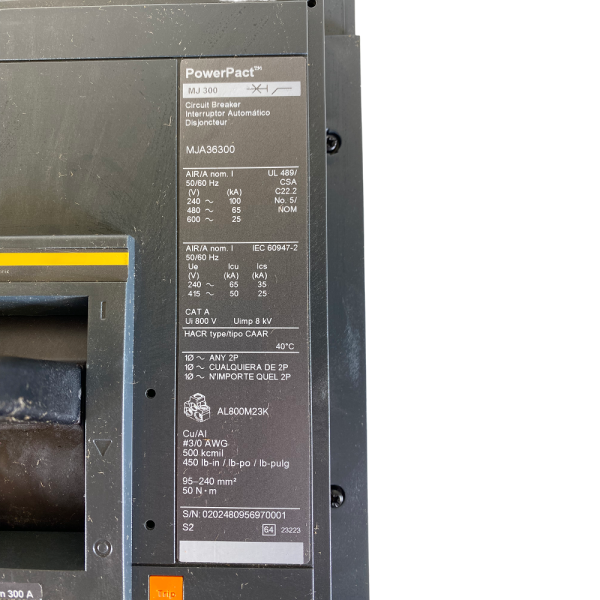

Square D MJA36300 600V 300A 3P Circuit Breaker

$6,577.42

Availability:

Out of stock

SKU: 2674d13A Categories: ,

Additional information

Brand

Square D

MPN

MJA36300

Model

Circuit Breaker

Voltage Rating

600V AC

Amps

300 A

Number of Poles

3

Network Frequency

50/60 Hz

Max. AIR Rating

25kA at 600V AC

For Use With

I Line Panelboards

High Amp Trip Setting

3,000 A

Low Amp Trip Setting

600 A

Circuit Breaker Type

Standard

Terminal Connection

Box Lug

Trip Type

Electronic

Phase

Three

Phase Connection

ABC

Frame Size

800A/M

Circuit Breaker Mounting Style

Panel Mount

Dimensions

12.9 in x 8.3 in x 8.1 in

Min. Wire Size

3/0 AWG

Max. Wire Size

500 MCM

Circuit Breaker Actuator

Toggle

Standards

UL
CSA
NEMA
NOM-003-SCFI-2000
IEC 60947-2

Ambient Air Temperature for Operation

-13…158 °F (-25…70 °C)

IP

IP40

Description

Square D MJA36300 600V 300A 3P Circuit Breaker
