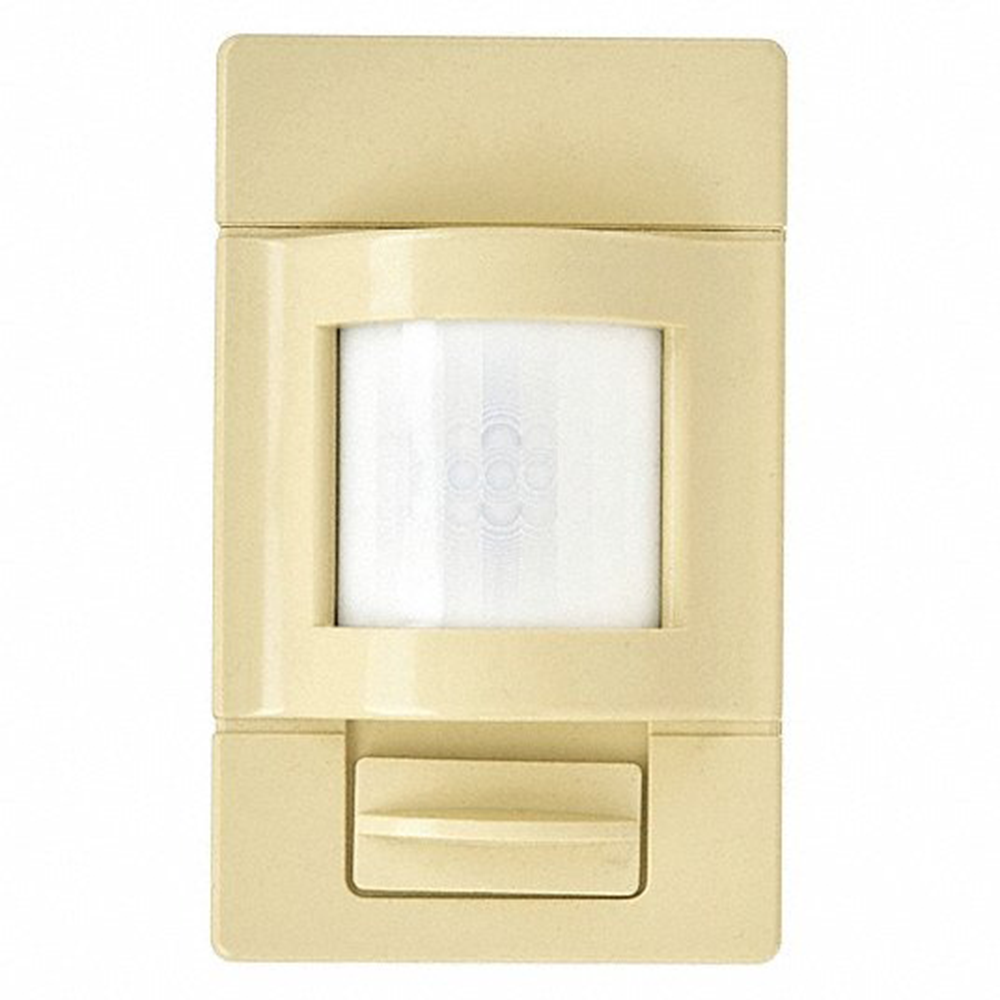

Sensor Switch LWS IV 120 V/277 V AC Occupancy Sensor



2 in stock

SKU: 2514jID2 Categories: ,

Additional information


Sensor Switch



Communication Method

Hard Wired

Sensing Technology

Passive Infrared

Installation Location

Wall Switch Box


1200 sq ft

Operating Voltage

120 V AC; 277 V AC

Time Delay

30 sec to 20 min


Sensor Switch LWS IV 120 V/277 V AC Occupancy Sensor

Thank you for your interest in this item. We do our best to accurately describe each item as best as possible. We ask you to please review all photos and the description of the item’s condition prior to purchase. If you have any questions or require any additional information, send us a message and we will happily assist you in a timely manner.

Product Details

Catalog PageN/A
Item – Motion Sensing and DimmingOccupancy Sensor
Communication Method – Motion Sensing and DimmingHard Wired
Sensing TechnologyPassive Infrared
Installation Location – Motion SensorWall Switch Box
Coverage at Suggested Mounting Height1,200 sq ft
Operating Voltage – Motion Sensing and Dimming120 V AC; 277 V AC
Color – Motion Sensing and DimmingIvory
Time Delay – Motion Sensor30 sec to 20 min
Time Delay Adjustment Method – Motion SensorAdaptive; Manual
Coverage Angle – Motion Sensor180 °
Suggested Mounting Height – Motion Sensor2 ft 6 in to 4 ft
Max. Capacity @ 120VAC800W (Fluorescent, Incandescent)
Max. Capacity @ 277VAC1200W (Fluorescent, Incandescent)
Lighting TechnologyFluorescent; Incandescent; LED
StandardsCA Title 24 Compliant; UL and cUL Listed
Country of OriginMexico (subject to change)
