Additional information
| Brand | Tritan |
|---|---|
| MPN | 36UY51 |

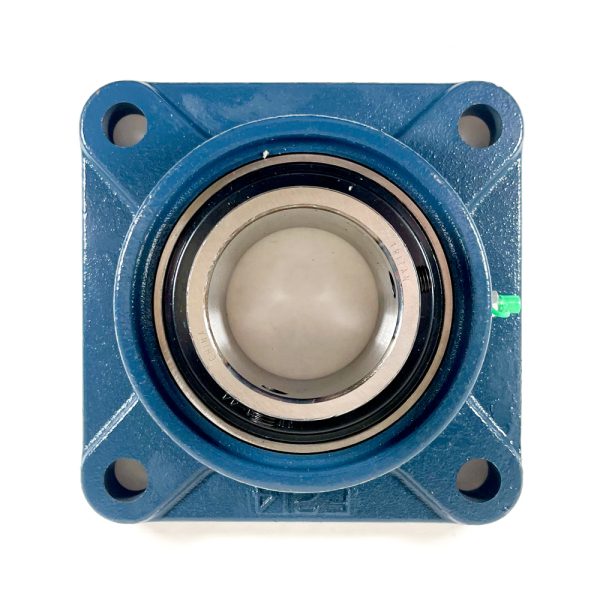

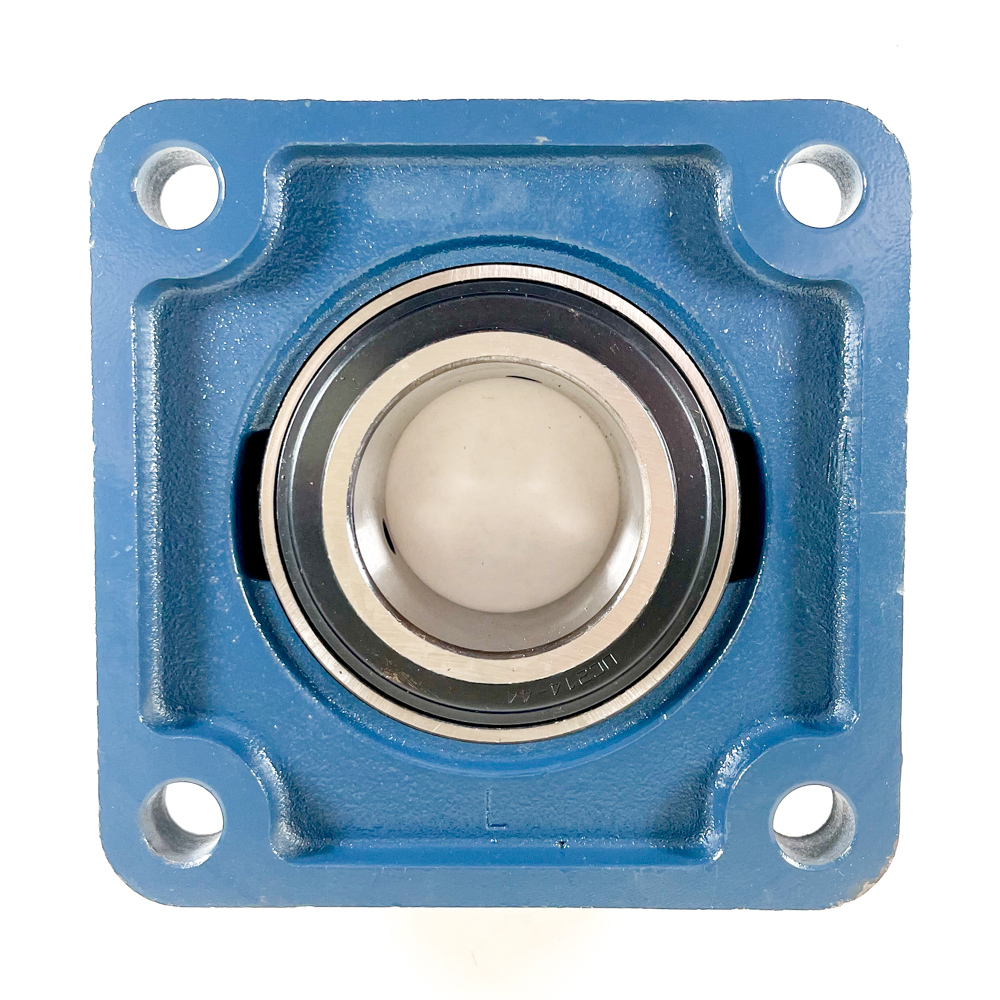

| Model | 4-Bolt Flange Bearing |
| Bore Diameter | 2-3/4 in |
| Bearing Insert Type | Radial Ball |
| Number of Mount Holes | 4 |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Bearing Insert Material | Alloy Steel |
| Bearing Material Grade | 52100 |
| Shaft Locking Type | Set Screws |
| Dimensions | 7-19/32" x 7-19/32" x 2-31/32" |
| Flange Thickness | 55/64 in |
| Mount Hole Center-to-Center | 5-63/64 in |
| Mounting Bolt Size | 5/8 in |
| Mount Hole Size | 3/4 in |
| Seal Material | Rubber |
| Housing Type | Square |
| Bore Type | Cylindrical |
| Temperature Range | -40 °F to 250 °F |
| Standards | AFBMA; ISO Certified |
